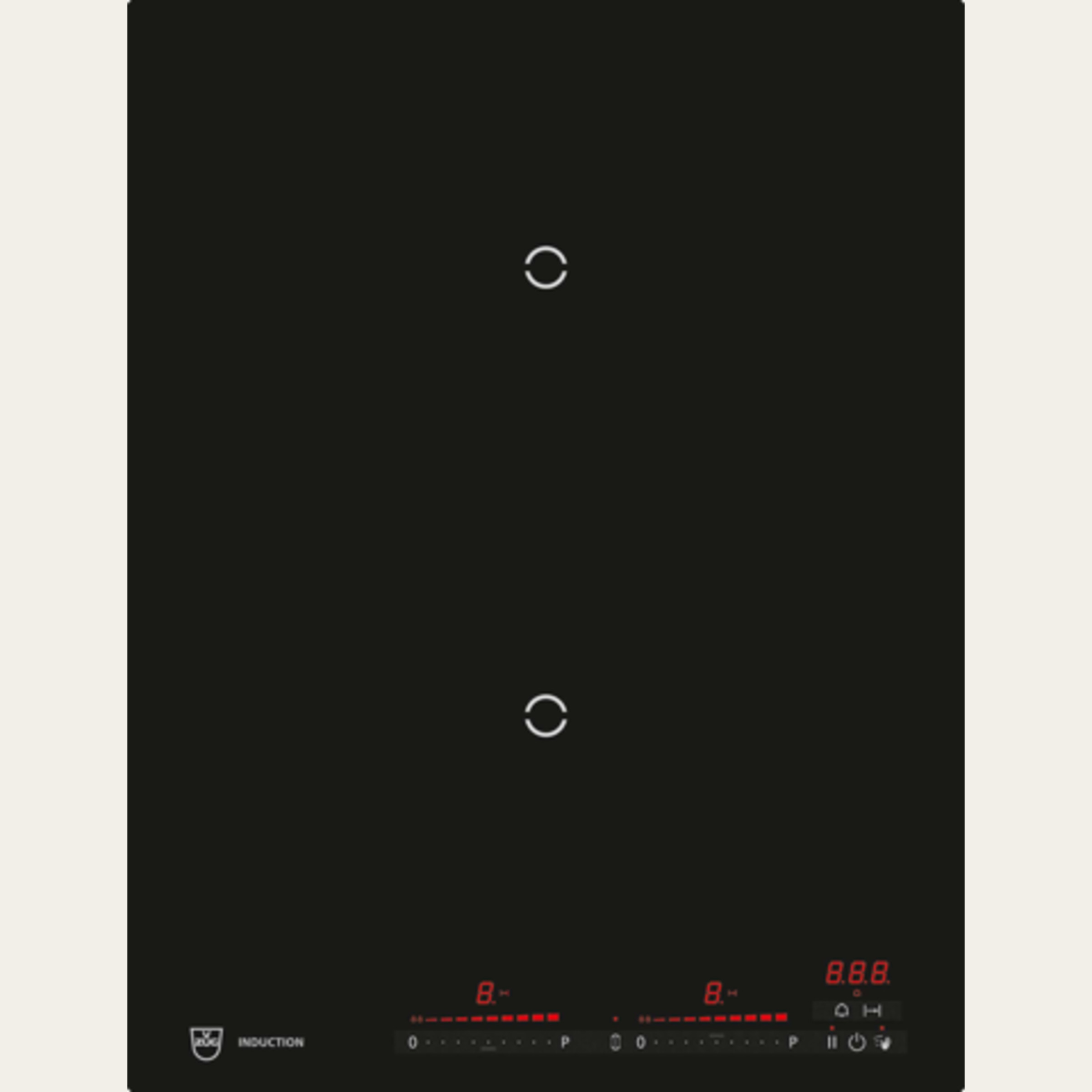

GK27TIMS

  • Controls

    MultiSlider/direct selection

  • OptiGlass

    No

  • OptiLink

    No

  • V-ZUG-Home

    No

  • Standard width

    40.0 cm

  • Front design

    BlackDesign

  • Cooking zones

    2

  • Frame

    DualDesign

  • Appliance corner radius

    1.5 mm

  • Download product data sheet
    Download brochure

Selected appliance

Article no. 3108566205
EAN code 7630029429556
Controls MultiSlider/direct selection
Standard width 40.0 cm
Front design BlackDesign
Frame DualDesign

Display and operation

Display Graphic touch display
Controls MultiSlider/direct selection
Slider control Yes
Operating time Yes
Button sound (on/off) Yes

Hob features

OptiClean   Yes
Hob category Teppan Yaki
Operating time with shut-down function   Yes
Residual heat indicator Yes
Timer Yes
Restore function   Yes
Cooking zones 2
Power levels 9
Heating technology induction cooking zones

Service and interfaces

Warranty 2 years
  • Pictogram forChildproof look Childproof look
  • Pictogram forPause button Pause button
  • Pictogram forPerfect for meat Perfect for meat
  • Pictogram forPerfect for fish Perfect for fish
  • Pictogram forPerfect for vegetables Perfect for vegetables
  • Pictogram forCleaning lock Cleaning lock
  • Pictogram forZone connection Zone connection

Other settings

CookingControl   Yes
TemperatureControl   Yes
Safety package   Yes
Pan detection (10–22 cm)   Yes

Technical data

Dimensions

Cut-out height 8.5 mm
Cut-out radius 5 mm
Appliance height 51.7 mm
Appliance width 384 mm
Appliance depth 501 mm
Appliance corner radius 1.5 mm
Support size width 373 mm
Max. support size width 373 mm
Support size depth 490 mm
Max. support size depth 490 mm
Installation height when flush-fitted 51.7 mm
Installation height when surface-mounted 47.7 mm
Cut-out width when flush-mounted 390 mm
Cut-out width when surface-mounted 373 mm
Max. cut-out width when surface-mounted 373 mm
Cut-out depth when flush-mounted 507 mm
Cut-out depth when surface-mounted 490 mm
Max. cut-out depth when surface-mounted 490 mm
Empty weight 6.5 kg
Cooking zone 1 position front
Cooking zone 1 dimensions 18x20 cm
Cooking zone 2 position rear
Cooking zone 2 dimensions 18x20 cm

Energy

Cooking zone 1 max. power 3700 W
Cooking zone 2 max. power 3700 W
Type of connection (1) 220-240V~
Frequency (1) 50/60Hz
Frequency (2) 50/60Hz
Connected loads (1) 3.7 kW
Fuse protection (1) 16 A
Plug type cable
