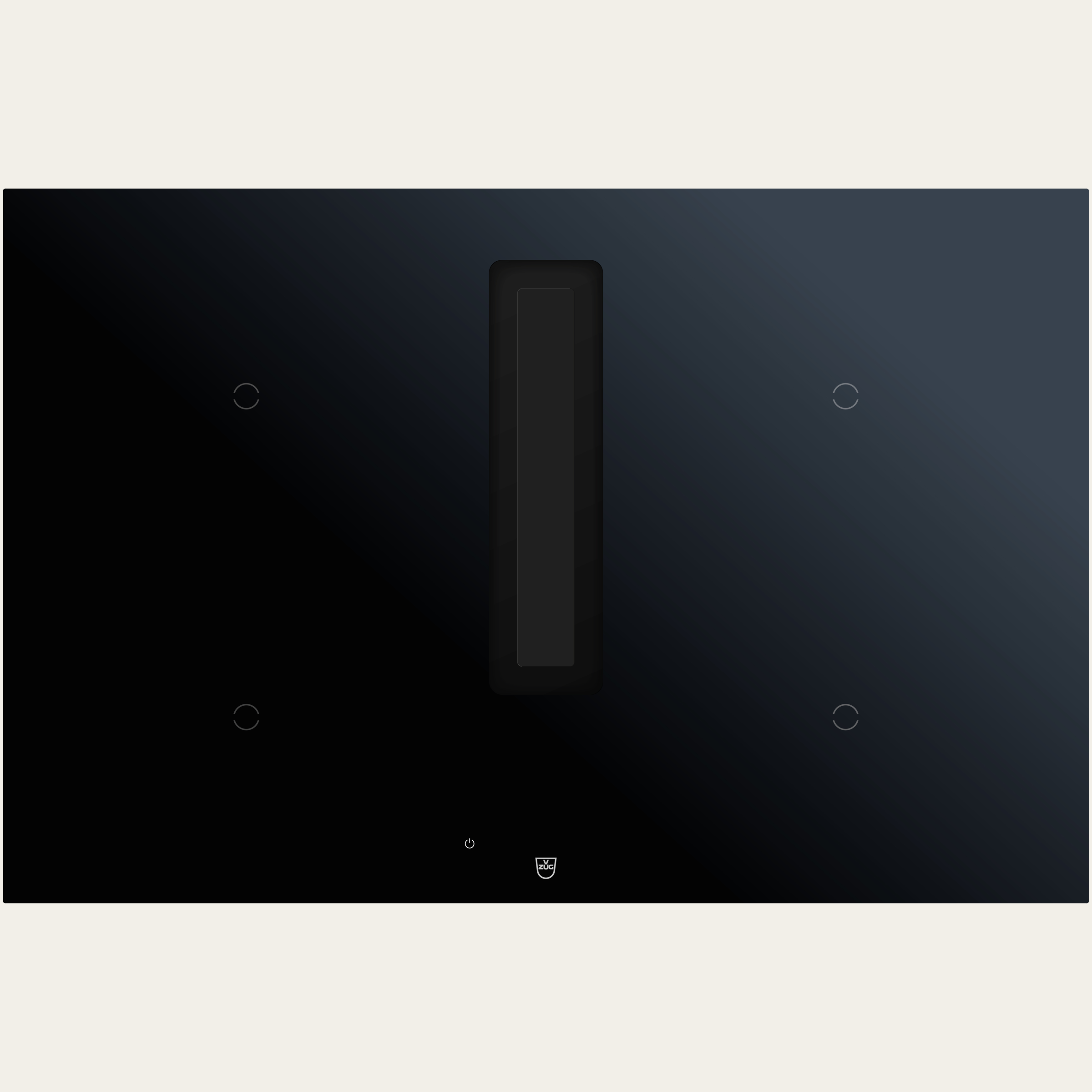

GKD46TIMAS Fusion

  • V-ZUG-Home

    No

  • OptiLink

    No

  • OptiGlass

    Yes

  • Controls

    TouchControl

  • Standard width

    80 cm

  • Cooking zones

    4

  • Front design

    BlackDesign

  • Frame

    DualDesign

  • Appliance corner radius

    1.5 mm

  • Energy efficiency rating Energy efficiency rating
  • Download product data sheet
    Download brochure

Selected product

Article no. 3109465415
EAN code 7630029429747
Hero-Name Fusion
OptiGlass   Yes
Controls TouchControl
Standard width 80 cm
Front design BlackDesign
Frame DualDesign

Display and operation

Display Graphic touch display
Controls TouchControl
Slider control Yes
Languages in display   de, en, fr, it
Button sound (on/off) Yes

Hob features

OptiGlass   Yes
Hob category Induction
Operating time with shut-down function   Yes
Residual heat indicator Yes
Timer Yes
Restore function   Yes
Cooking zones 4
Power levels 9
Heating technology induction cooking zones

Range hood features

Power levels 9

Service and interfaces

WLAN as standard 802.11 b/g/n
Warranty 2 years

Also available with/as (*)

Recirculation air filter Standard activated charcoal filter

(*) Not all combinations are available. Ask your retailer for advice.

  • Pictogram forExtracted air Extracted air
  • Pictogram forHeating function Heating function
  • Pictogram forChildproof look Childproof look
  • Pictogram forPowerplus Powerplus
  • Pictogram forPause button Pause button
  • Pictogram forWarming function Warming function
  • Pictogram forAutomatic warm-up function Automatic warm-up function
  • Pictogram forCleaning lock Cleaning lock
  • Pictogram forZone connection Zone connection
  • Pictogram forMelt function Melt function
  • Pictogram forSimmer function Simmer function

Other settings

CookingControl   Yes
TemperatureControl   Yes
Safety package   Yes
Pan detection   10-22 cm

Technical data

Dimensions

Cut-out height 8.5 mm
Cut-out radius 5 mm
Appliance height 206 mm
Appliance width 761 mm
Appliance depth 501 mm
Appliance corner radius 1.5 mm
Support size width 750 mm
Max. support size width 750 mm
Support size depth 490 mm
Max. support size depth 490 mm
Installation height when flush-fitted 206 mm
Installation height when surface-mounted 202 mm
Cut-out width when flush-mounted 767 mm
Cut-out width when surface-mounted 750 mm
Max. cut-out width when surface-mounted 750 mm
Cut-out depth when flush-mounted 507 mm
Cut-out depth when surface-mounted 490 mm
Max. cut-out depth when surface-mounted 490 mm
Empty weight 23.5 kg
Cooking zone 1 position front left
Cooking zone 1 dimensions 18 cm
Cooking zone 2 dimensions 21 cm
Cooking zone 3 dimensions 21 cm
Cooking zone 4 dimensions 18 cm

Energy

Energy efficiency rating B
Annual energy consumption 50.2 kWh
Fluid dynamic efficiency 25.9
Fluid dynamic efficiency rating B
Cooking zone 1 max. power 3000 W
Cooking zone 2 max. power 3500 W
Cooking zone 3 max. power 3700 W
Cooking zone 4 max. power 3000 W
Type of connection (1) 380-415 V 2N~
Type of connection (2) 380-415 V 2N~
Frequency (1) 50 Hz
Frequency (2) 50 Hz
Connected loads (1) 7.4 kW
Connected loads (2) 7.4 kW
Fuse protection (1) 16 A
Fuse protection (2) 32 A
Plug type cable

Additional data

Grease absorption capacity rating C
Extracted air output, intensive setting 582.8 m³/h
Extracted air output, max. setting 371 m³/h
Extracted air output, min. setting 66 m³/h
Recirculation air output, intensive setting 521 m³/h
Recirculation air output, max. setting 350 m³/h
Recirculation air output, min. setting 16 m³/h
Extracted air noise output, intensive setting 68 dB(A)
Extracted air noise level, max. setting 60 dB(A)
Extracted air noise output, min. setting 28 dB(A)
Recirculation air noise output, intensive setting 75 dB(A)
Schallleistung Umluft max. Stufe 66 dB(A)
Recirculation air noise output, min. setting 31 dB(A)
