• V-ZUG-Home


  • OptiGlass


  • Standard width

    90 cm

  • Cooking zones


  • Front design


  • Type of connection (1)

    380-415 V 3N~

  • Price

    CHF 3'560.00

  • Download product data sheet
    Download brochure

Selected product

Article no. 3110900500
EAN code 7630029426180
Predecessor’s article number 3104200500
Product category Hob
Standard width 90 cm
Front design BlackDesign
Frame Chrome frame

Display and operation

Display Digital display
Controls MultiSlider/direct selection
Slider control Yes
Operating time Yes
Button sound (on/off) Yes

Hob features

Power-Tronic   1
Hob category Toptronic
Operating time with shut-down function   Yes
Residual heat indicator Yes
Timer Yes
Restore function   Yes
Cooking zones 5
Power levels 9
Heating technology radiation cooking zones

Service and interfaces

Warranty 2 years

Also available with/as (*)

Frame DualDesign

(*) Not all combinations are available. Ask your retailer for advice.

  • Pictogram forChildproof look Childproof look
  • Pictogram forSafety package Safety package
  • Pictogram forPan detection Pan detection
  • Pictogram forPause button Pause button
  • Pictogram forAutomatic warm-up function Automatic warm-up function
  • Pictogram forCleaning lock Cleaning lock

Technical data


Appliance height 54.5 mm
Appliance width 910 mm
Appliance depth 514 mm
Appliance corner radius 8 mm
Support size width 886 mm
Max. support size width 886 mm
Support size depth 490 mm
Max. support size depth 490 mm
Installation height when surface-mounted 50.5 mm
Cut-out width when surface-mounted 886 mm
Max. cut-out width when surface-mounted 886 mm
Cut-out depth when surface-mounted 490 mm
Max. cut-out depth when surface-mounted 490 mm
Empty weight 14 kg

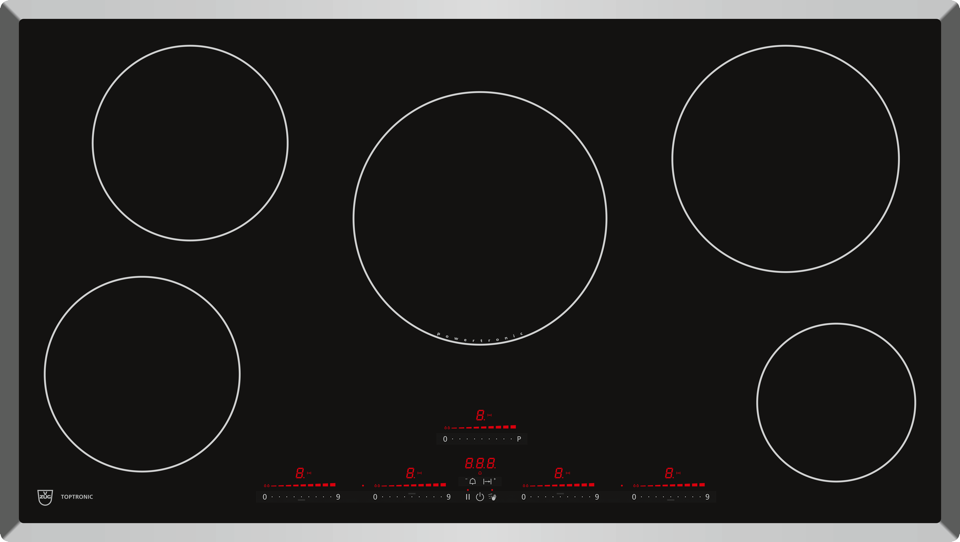

Cooking zone 1 position front left
Cooking zone 1 dimensions 18 cm
Cooking zone 2 position rear left
Cooking zone 2 dimensions 18 cm
Cooking zone 3 position central
Cooking zone 3 dimensions 23 cm
Cooking zone 4 position rear right
Cooking zone 4 dimensions 21 cm
Cooking zone 5 position front right
Cooking zone 5 dimensions 14 cm


Cooking zone 1 max. power 1800 W
Cooking zone 2 max. power 1800 W
Cooking zone 3 max. power 3200 W
Cooking zone 4 max. power 2300 W
Cooking zone 5 max. power 1200 W
Type of connection (1) 380-415 V 3N~
Type of connection (2) 220-240 V~
Frequency (1) 50-60 Hz
Frequency (2) 5 0-60 Hz
Connected loads (1) 10.3 kW
Connected loads (2) 10.3 kW
Fuse protection (1) 16 A
Fuse protection (2) 48 A

The following accessories go with this device

Product imageCleaning primer for glass ceramic hob

Cleaning primer for glass ceramic hob

Art. no. H61115
  • Price: CHF 41.00

Product imageThermo protection set for GK55TES

Thermo protection set for GK55TES

Art. no. H63280
  • Price: CHF 97.00
