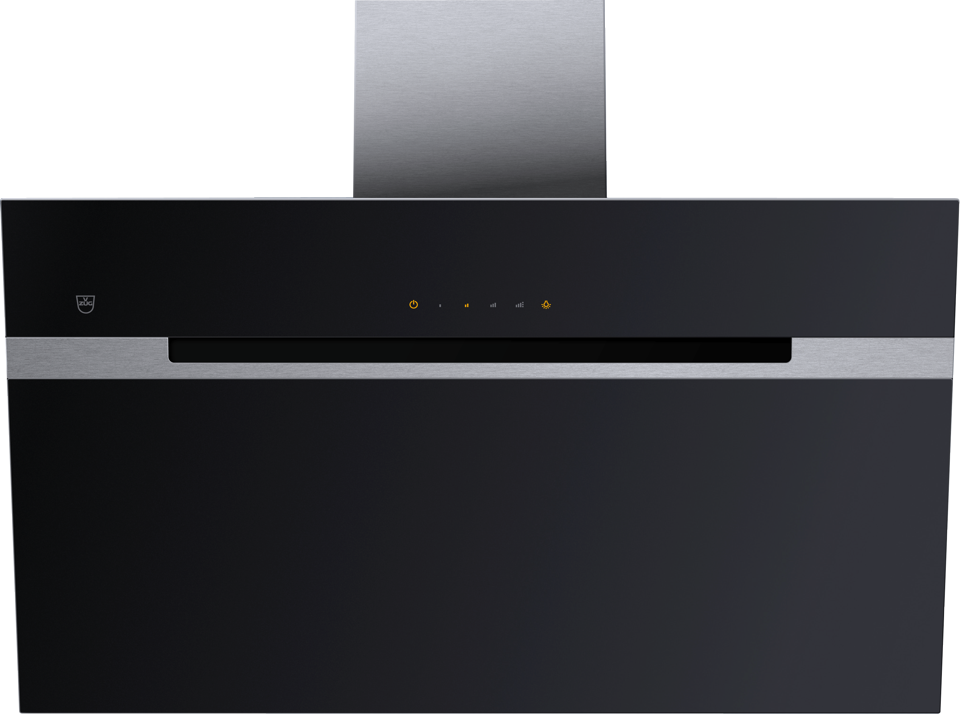

Selected appliance
| Article no. |
6200900005 + H43402 |
|
EAN code |
7630029408926 + 7630029409176 |
|
Controls |
TouchControl |
|
Standard width |
90 cm |
|
Front design |
Glass |
|
Installation method |
Wall hood |
Display and operation
|
Controls |
TouchControl |
|
Fan power level display |
Yes |
|
Lighting |
LED |
|
Number of lights |
2 |
Range hood features
|
Grease filter cleaning indicator
|
Yes |
|
Activated charcoal filter saturation indicator
|
Yes |
|
Power levels |
3 + i |
|
Fleece grease filter |
2 |
|
Side exhaust
|
Yes |
|
Non-return flap, integrated/attached |
included |
Service and interfaces
Also available with/as (*)
| Telescopic casing |
Standard |
| Recirculation air filter |
Standard activated charcoal filter, Long-life activated charcoal filter |
(*) Not all combinations are available. Ask your retailer for advice.
-
Grease filter cleaning indicator
-
Side exhaust
-
Activated charcoal filter saturation indicator
-
recirculation air
-
Intensive setting
-
Automatic after-running time
Technical data
Dimensions
|
Front height |
515 mm |
|
Height: Extracted air/recirculation air |
51.5 cm |
|
Appliance width |
898 mm |
|
Appliance depth |
325 mm |
|
Max. appliance depth |
325 mm |
|
Empty weight |
19 kg |
Energy
|
Consumption when off |
0.0 W |
|
Energy efficiency rating |
A |
|
Annual energy consumption |
50.2 kWh |
|
Lighting efficiency rating |
A |
|
Fluid dynamic efficiency |
34.2 |
|
Fluid dynamic efficiency rating |
A |
|
Type of connection (1) |
220-240 V~ |
|
Nominal lighting output (quantity x W) |
2 x 2.5 |
|
Frequency (1) |
50 Hz |
|
Connected loads (1) |
0.3 kW |
|
Fuse protection (1) |
10 A |
|
Plug type |
CH Typ 12 |
|
Connection cable |
1.5 m |
Additional data
|
Exhaust air connection (diameter) |
150 mm |
|
Lighting efficiency |
29 |
|
Illumination on cooking surface |
145 lux |
|
Grease absorption capacity rating |
D |
|
Extracted air output, intensive setting |
823 m³/h |
|
Extracted air output, max. setting |
647 m³/h |
|
Extracted air output, min. setting |
368 m³/h |
|
Recirculation air output, intensive setting |
464 m³/h |
|
Recirculation air output, max. setting |
447 m³/h |
|
Recirculation air output, min. setting |
394 m³/h |
|
Extracted air noise output, intensive setting |
72 dB(A) |
|
Extracted air noise level, max. setting |
66 dB(A) |
|
Extracted air noise output, min. setting |
53 dB(A) |
|
Motor(s) |
1 |
|
Motor output |
300 W |
