DWQS

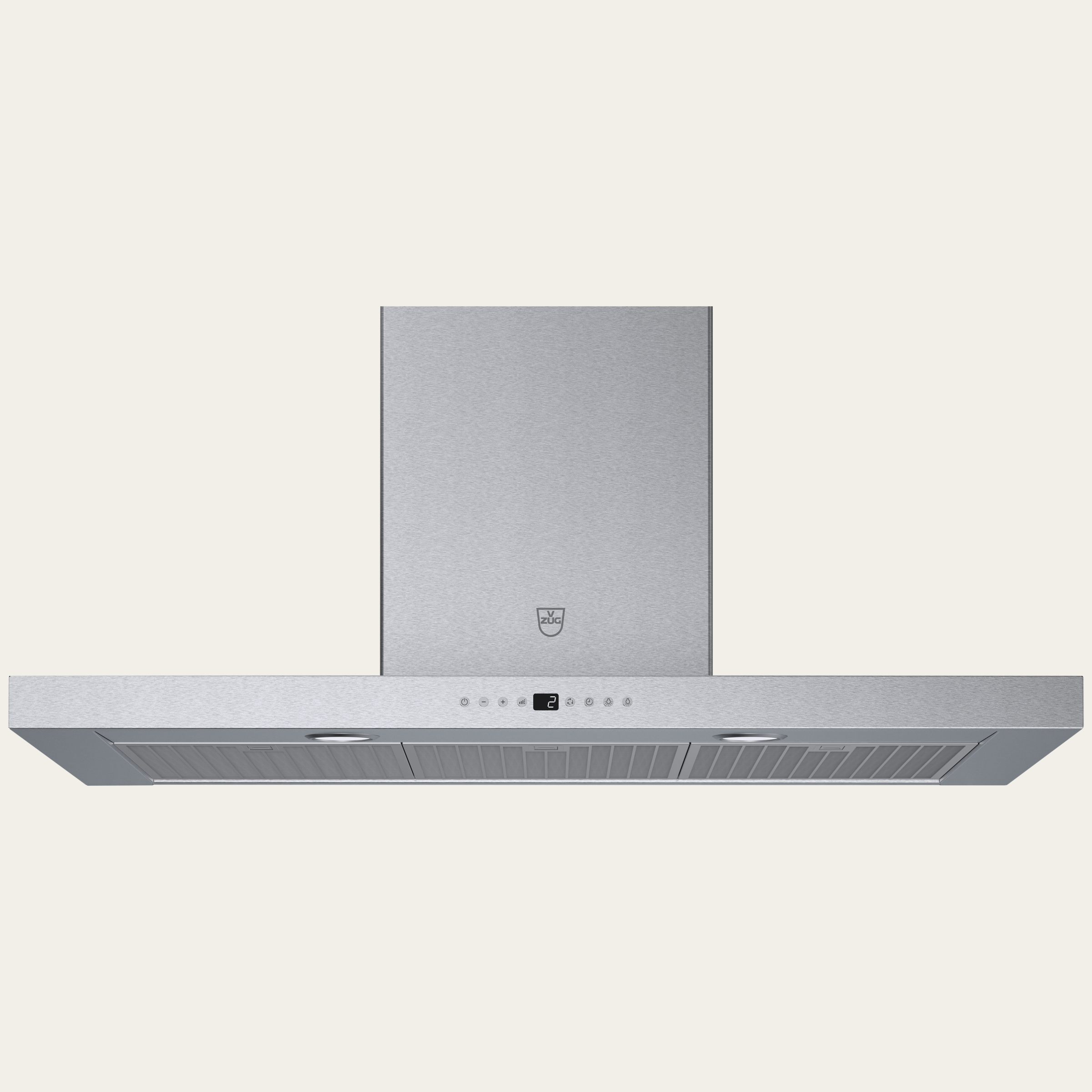

Product image
Find dealer

  • Controls

    push buttons

  • With pullout glass

    No

  • OptiLink

    No

  • Front design

    ChromeClass

  • Price

    CHF 2'072.00

  • Energy efficiency rating Energy efficiency rating
  • Download product data sheet
    Download brochure

Selected appliance

Article no. 6202000003 + 1046987
EAN code 7630029426753 + 7630029429037
Controls push buttons
Telescopic casing Standard
Standard width 70.0 cm
recirculation air   Yes
Front design ChromeClass
Installation method Wall hood
Recirculation air filter Standard activated charcoal filter

Display and operation

Controls push buttons
Fan power level display Yes
Lighting LED
Number of lights 2
Grease filter cleaning indicator   Yes

Range hood features

Extracted air noise level, max. setting 66 dB(A)
Telescopic casing Standard
Power levels 3 + i
Remote control Optional, available as accessory
Dimming lights   Yes
Fleece grease filter 2
Non-return flap, integrated/attached included

Service and interfaces

Warranty 2 years

Also available with/as (*)

Standard width 60.0 cm, 90.0 cm
Extracted air Yes
Recirculation air filter Long-life activated charcoal filter
Telescopic casing Long

(*) Not all combinations are available. Ask your retailer for advice.

  • Pictogram forDimming lights Dimming lights
  • Pictogram forIntensive setting Intensive setting
  • Pictogram forAutomatic after-running time Automatic after-running time

Technical data

Dimensions

Device height exhaust air 650 mm
Device height exhaust air maximum 810 mm
Device height recirculation air 710 mm
Device height recirculation air maximum 920 mm
Front height 60 mm
Appliance width 698 mm
Appliance depth 470 mm
Max. appliance depth 470 mm
Empty weight 17.7 kg

Energy

Energy efficiency rating A+
Annual energy consumption 41.7 kWh
Lighting efficiency rating A
Fluid dynamic efficiency 35
Fluid dynamic efficiency rating A
Type of connection (1) 220-240V~
Nominal lighting output (quantity x W) 2 x 1 W W
Frequency (1) 50Hz
Connected loads (1) 0.27 kW
Fuse protection (1) 10 A
Plug type CH Typ 12
Connection cable 1.2 m

Additional data

Recirculation air noise output, max. setting 75 dB(A)
Light colour in kelvin   3000 K
Exhaust air connection (diameter) 150 mm
Lighting efficiency 109
Illumination on cooking surface 240 lux
Grease absorption capacity rating B
Extracted air output, intensive setting 700 m³/h
Extracted air output, max. setting 580 m³/h
Extracted air output, min. setting 300 m³/h
Recirculation air output, intensive setting 440 m³/h
Recirculation air output, max. setting 420 m³/h
Recirculation air output, min. setting 280 m³/h
Extracted air noise output, intensive setting 69 dB(A)
Extracted air noise level, max. setting 66 dB(A)
Extracted air noise output, min. setting 52 dB(A)
Recirculation air noise output, intensive setting 76 dB(A)
Connection for fresh air/exhaust air flap Yes
Motor(s) 1
Motor output 270 W W
