V-ZUG DKS | Range hoods | V6104300000_Abluft

Article no. 6104300000

DKS

V-ZUG Built-in range hood DK-S5i, nero

Designs available

Nero
White

Price

CHF 870.00

/Piece

V-ZUG Built-in range hood DK-S5i, nero

Select a variant of DKS

Dimension

Standard width

55 cm

Design

Front design

Nero

Controls

Controls

slide switch

Technical Features

Type of connection (1)

220-240 V~

Features

With pullout glass

No

Recirculation air filter

None

Extracted air

Yes

Recirculation air

No

Details

Article no.

Energy efficiency class

Download energy label D

Product data sheet

Product information

Extracted air

Cooking fumes are conveyed directly outside via an exhaust duct.

Further accessories

Front panel, W 550 x H 251 mm, Nero

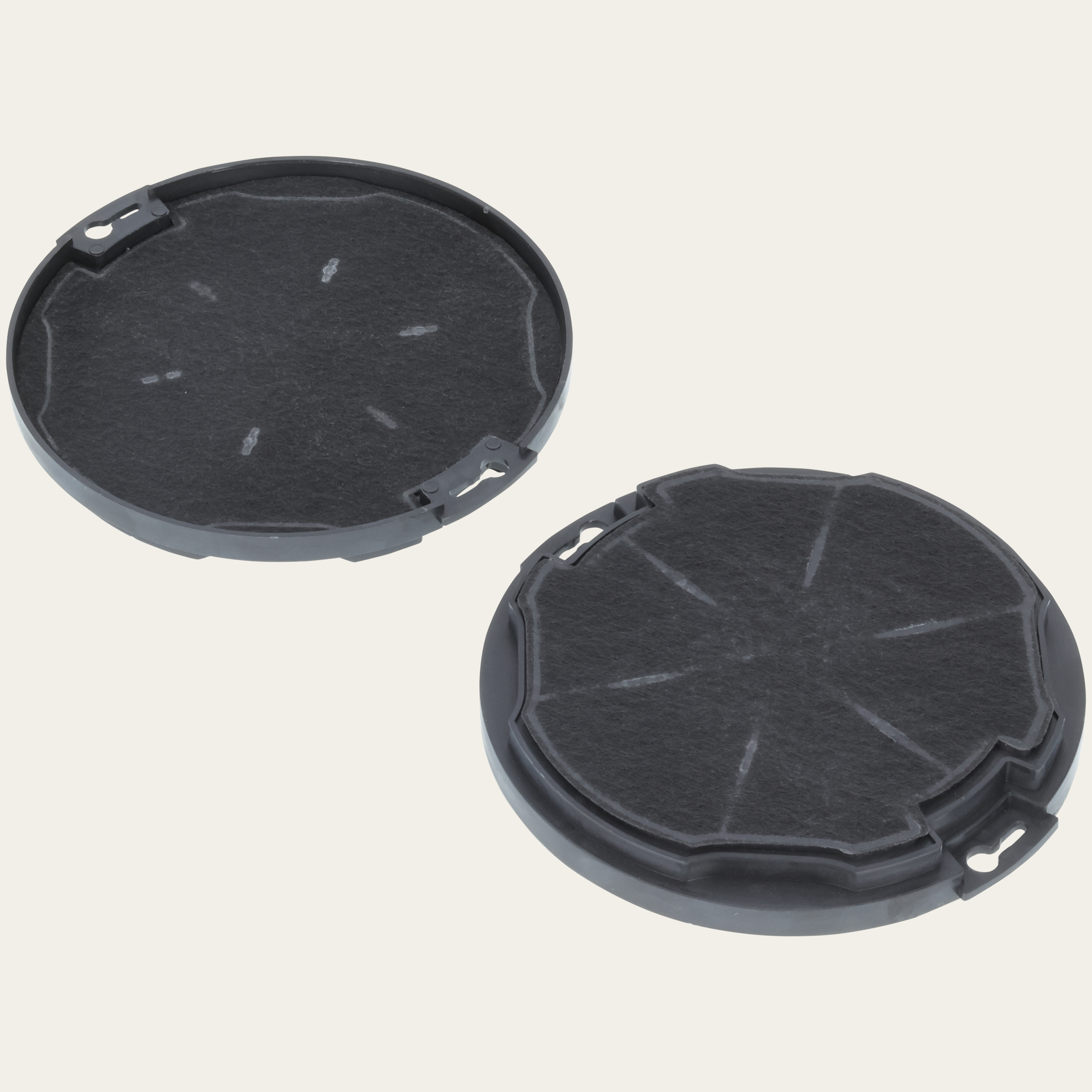

Standard activated carbon filter

Flat channel, W 222 x H 89 x D 1000 mm

Channel connector for straight flat channel, length 80 mm

Air duct F-EST System ø150 endpiece, flat to round, Long 190mm

90° diverter piece, vertical to flat channel, fitting ø 150 mm, length = 205 mm

Elbow 90°, horizontal for flat channel, W 227 x H 94 x D 288 mm

Elbow 90°, vertical for flat channel, W 227 x H 94 x D 174 mm

Flat channel, flex elbow flat, deflection and rotation up to 180°, W 227 x H 94 x D 240 - 600 mm

Flat channel, flex elbow from round to flat, deflection and rotation up to 180°, ø 150 mm, W 227 x H 94 x D 160 - 550 mm

Weather protection louvre stainless steel with non-return flap W 290 x H 160 mm for connection to flat channel W 222 x H 89 mm)

Aluminium hose, sound absorber, ø 150 mm

Air duct, flat channel, W 222 x H 89 x D 500 mm

Air duct, flat channel, W 222 x H 89 x D 1000 mm

Air duct, flexible flat channel, W 222 x H 89 x D 500 mm

Air duct, flexible flat channel, W 222 x H 89 x D 1000 mm

Air duct, connector for flat channel straight, length 100 mm

Air duct, diverter piece 90°, vertical for flat channel, ø 150 mm, length 236 mm

Air duct, elbow 90°, horizontal for flat channel, W 227 x H 94 x D 288 mm

Air duct, elbow 90°, vertical for flat channel, W 227 x H 94 x D 174 mm

Air duct, transition piece for flat channel, ø 150 mm, length 190 mm

Air duct, pipe connector, ø 150 mm

Air duct, offset end piece on base motor, ø 150 mm

Air duct, pipe set for direct connection to the extracted air system

Front panel, W 550 x H 251 mm, White

Front panel, W 600 x H 251 mm, Nero

Front panel, W 600 x H 251 mm, White

Air duct Metal pipe elbow connector

Aluminium hose, fully flexible, length 1 m, ø 150 mm

Hose clamp, ø 150 mm

Aluminium hose, semi-flexible, length 3 m, ø 160 mm

Helically wound tube or pipe, 3 meter, ø 125 mm

Helically wound tube or pipe, 3 meter, ø 150 mm

Connecting nipple, ø 150 mm

Connecting pipe, ø 125 mm

Connecting pipe, ø 150 mm

Elbow 90°, ø 125 mm

Elbow 90°, ø 150 mm

Reduction ø 150-125 mm

Pipe end piece, ø 150 mm

Pipe clamp with thread, sound insulation insert, ø 150 mm

Aluminium hose, semi-flexible, length 3 m, ø 125 mm

Aluminium hose, semi-flexible, length 3 m, ø 150 mm

Aluminium hose, fully flexible, length 10 m, ø 125 mm

Flat channel wall box

Double threaded pin M8, galvanized

Non-return flap valve with seal lip, ø 125 mm

Non-return flap valve with seal lip, ø 150 mm

Weather protection grille, round, aluminium, ø 150 mm

Telescopic wall tube with non-return flap, ø 125 mm

Telescopic casing pipe with return flap, ø 150 mm

Aluminium insulation tape, 50 m roll, width 50 mm

Flat channel, W 1000 x D 254 x H 82 mm

Flat channel, W 600 x D 254 x H 82 mm

Flat channel telescopable, W 275-535 x D 254 x H 82 mm

Reinforcing rib for flat channel, length 600 mm

Reinforcing rib for flat channel, length 1000 mm

Mounting bracket for Flat duct

90° elbow, vertical, for flat channel

45° elbow, vertical, for flat channel

90° elbow, horizontal, for flat channel

45° elbow, horizontal, for flat channel

Junction piece from round to flat, ø 150mm

Diverter piece on flat channel, connector ø 150 mm

Weather protection grille, white, plastic, ø 150 mm

Flat channel reinforced, W 600 x D 254 x H 82 mm

Flat channel reinforced, W 1000 x D 254 x H 82 mm

Diverter piece on flat channel, connector ø 125 mm

Side-panel protective plate, 1 pair, 350 mm, ChromeClass

Side-panel protective plate, 1 pair, 350 mm, Nero

Side-panel protective plate, 1 pair, 350 mm, White

Side-panel protective plate, 1 pair, 370 mm, ChromeClass

Side-panel protective plate, 1 pair, 370 mm, Nero

Replacement air unit, motorised shut-off valve, ø 125 mm, 230 V

Replacement air unit, motorised shut-off valve, ø 150 mm, 230 V

Side-panel protective plate, 1 pair, 330 mm, White

Side-panel protective plate, 1 pair, 330 mm, Nero

Side-panel protective plate, 1 pair, 330 mm, ChromeClass

Optional control set SSM230 for 230V/16A
